Más Imágenes y ejemplos de montaje

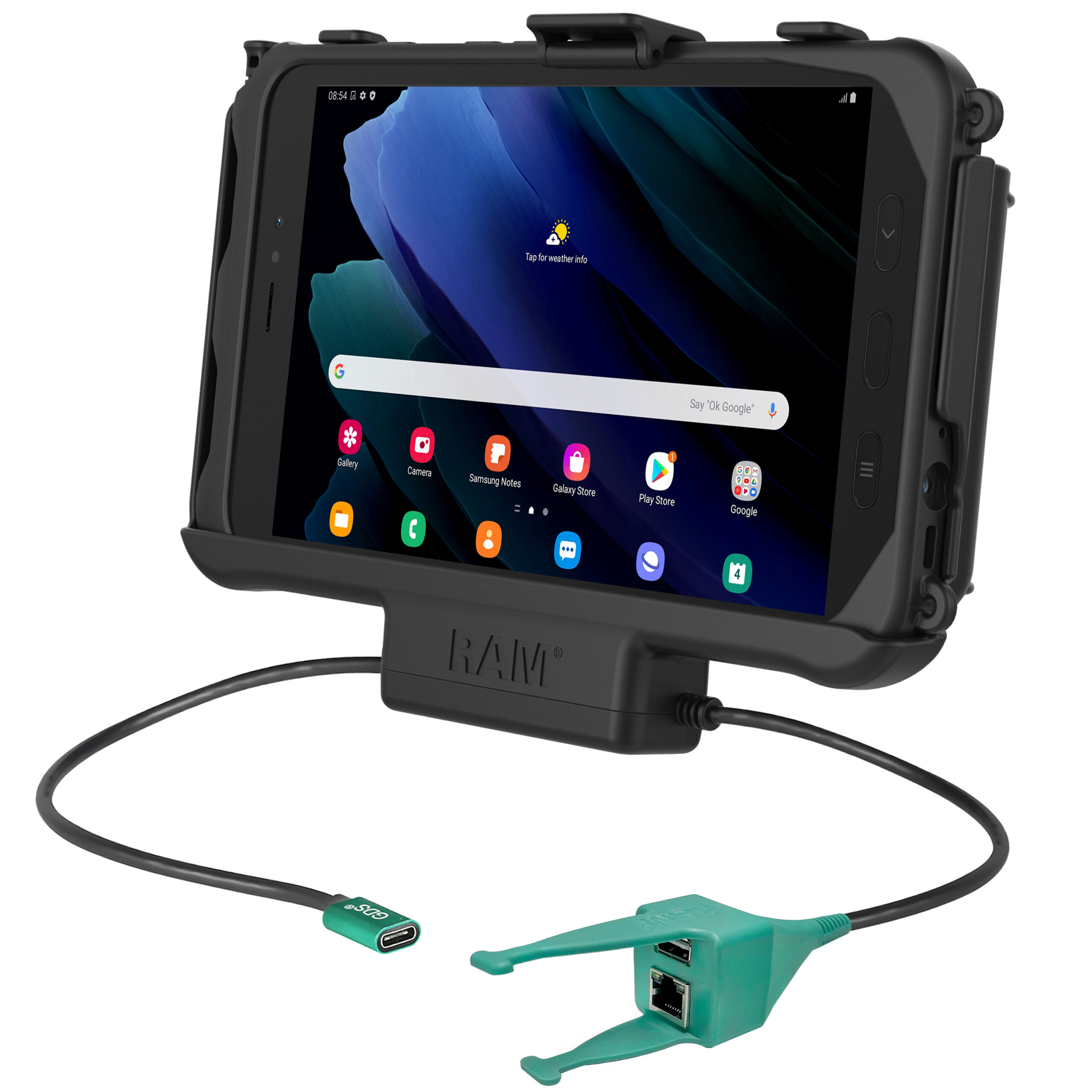

UNPKD EZ-ROLL’R DOCK USB-C POWER & 1 RJ45 + 1 USB-A FEMALE SOCKETS FOR SAMSUNG TAB ACTIVE2 & TAB ACTIVE3

Referencia: RAM-HOL-SAM60CP-RJ45AU

310,47

Disponible para reserva

Descripción

The RAM USB-C Powered Dock + USB-A & RJ45 Data for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM60CP-RJ45AU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS pogo pins while taking advantage of this dock’s dual USB Type-A and RJ45 (ethernet) pigtail to support up to two additional peripheral devices, making this the ideal, compact mounting solution for your mobile workstation. This modular dock is compatible with the RAM Skin, factory device skin, and GDS Hand-Stand. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern along with cable clamps and zip ties for cable retention.

  • Dock de carga RAM® EZ-RollrT diseñado específicamente para el Samsung Galaxy Tab Active5 y Tab Active3; proporciona carga a través de una conexión de pin pogo integrada y un cable USB-C (se requiere un cargador que no sea de Power Delivery)
  • Compatible con la piel OEM de Samsung, así como con la piel RAM®; la cavidad incorporada en la parte posterior permite la compatibilidad con GDS® Hand-StandT.
  • Potencia suministrada a través del conector USB-C; datos y ethernet se conectan al conector dual USB-A y RJ45.
  • El acceso a los altavoces, micrófonos y jack de auriculares permanece mientras el dispositivo está acoplado; permite el acceso a los bucles para la correa de hombro GDS® en RAM® SkinT.
  • Respaldado por una garantía de 3 años

Información adicional

Marcas

Línea de Producto

Tipo de Producto

Compatibilidad

,

Hardware Included

(6) Pegatinas pequeñas

Hole Pattern

4-Hole AMPS: 1.181" x 1.496"

Input Cable Length

215mm

Input Connector

USB Tipo-C hembra

Input Voltage

5.3-5.4VDC

Materials

Composite de alta resistencia

Output Cable Length

215mm

Output Connector

(1) RJ45

Output Voltage

5VDC

Packaging Type

Bolsa de Polietileno

Peripheral Output

900mA

Power Output

500mA

Product Dimensions

Profundidad: 2.57"

Product Weight

0.80 lb

Transfer Speed

480Mbps
